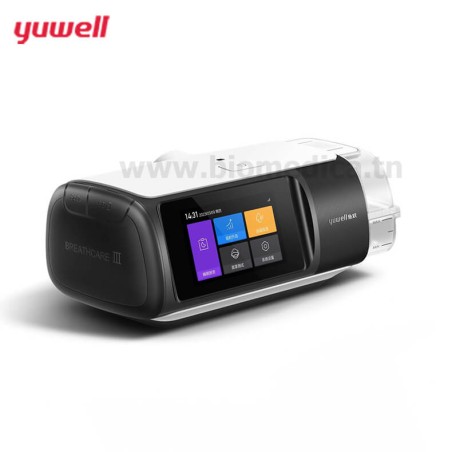

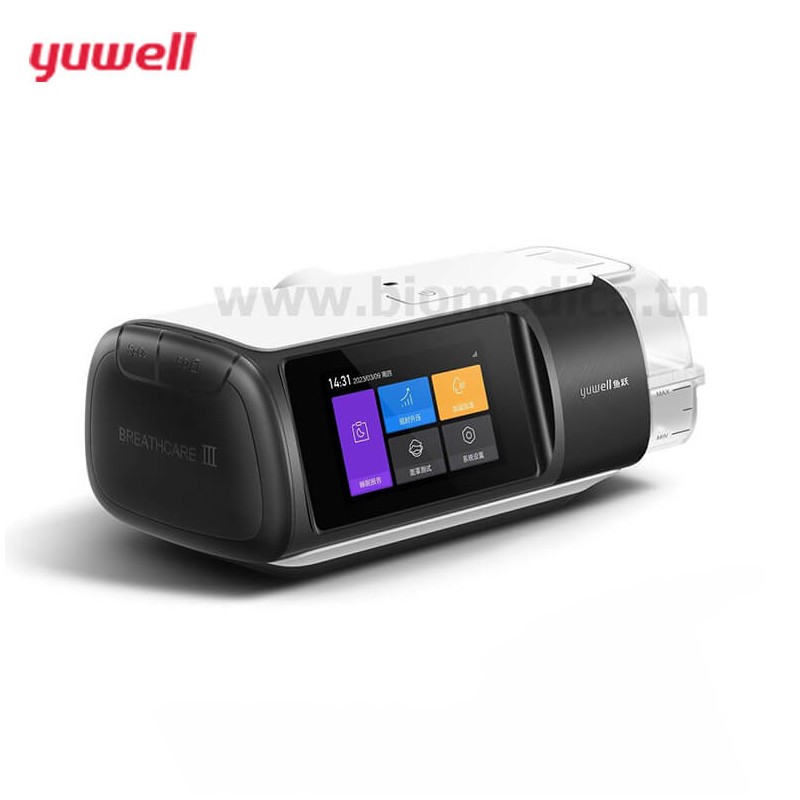

Yuwell YH-680A Automatic CPAP

Data transfer via SD card; the device is available by prescription only.

It is intended for the treatment of sleep apnea in adults weighing over 30 kg. It can be used at home, in hospitals, or in clinics.

Adjustable pressure (4–20 cmH2O), quiet operation (27 ± 2 dBA), touchscreen, and wireless connection via the BreathCare system.

- Operating Principle

The device uses electricity to generate continuous positive airway pressure and deliver air to patients within the therapeutic range.

- Components

The system includes:

* Main unit

* Water tank

* Heated tube (optional)

* Power supply and cable

* Breathing tube (sold separately)

- Contraindications

Continuous positive airway pressure therapy may be contraindicated in certain patients with the following conditions: severe bullous pneumonitis, pneumothorax, pathological hypotension, dehydration, cerebrospinal fluid leak, recent cranial surgery, or trauma.

- Warnings

* Failure to maintain the device during use may result in unacceptable risks.

* Ensure that cables and tubing do not become wrapped around the head or neck to avoid the risk of strangulation.

* If the device exhibits unusual behavior, makes noise, or is subjected to impact, discontinue use and contact YUWELL or your supplier.

* Do not place the device near curtains or other objects that block the air intake.

* Do not add inappropriate accessories to the humidification system.

* Keep the device away from magnetic fields, heat sources, and electromagnetic environments. • Do not use the device at an altitude exceeding 3,000 meters or outside a temperature range of +5°C to 35°C.

* The device is intended for single-patient use only. * Do not modify the device or connect it to equipment not intended for this purpose.

- Precautions

* Ensure the mask is properly fitted for optimal effectiveness.

* The patient is the operator at home.

* Check settings regularly to ensure treatment effectiveness.

* Only masks with appropriate exhalation ports should be used.

* The device must be positioned under the patient's head to prevent water from entering the tube.

* Do not use on patients who have undergone upper airway bypass surgery.

- Side Effects

The following side effects may occur when using the device:

* Dryness of the nose, mouth, or throat

* Nosebleeds

* Bloating

* Ear or sinus discomfort

* Eye irritation

* Skin rash

- Installation

1. Press the reservoir button to remove it. 2. Fill the reservoir with distilled water to the minimum and maximum levels.

3. Reinsert the reservoir into the device until it clicks into place.

4. Place the device on a flat surface and plug it in.

5. Connect the air hose to the power outlet.

6. Put on the mask and connect the hose to the mask.

- Starting Therapy

* Put on the mask.

* Press the on/off button or breathe normally if the Smart Start function is enabled. • Parameters such as pressure and humidity are displayed.

* The screen turns off after 2 minutes of inactivity.

- Ending Therapy

* Remove the mask.

* Press the button or allow Smart Stop to shut down the device after 8 seconds.

* To completely shut down, disconnect the power adapter.

-----

The Yuwell YH-680A Breathcare III automatic CPAP machine is available for delivery to Tunis and throughout Tunisia.
