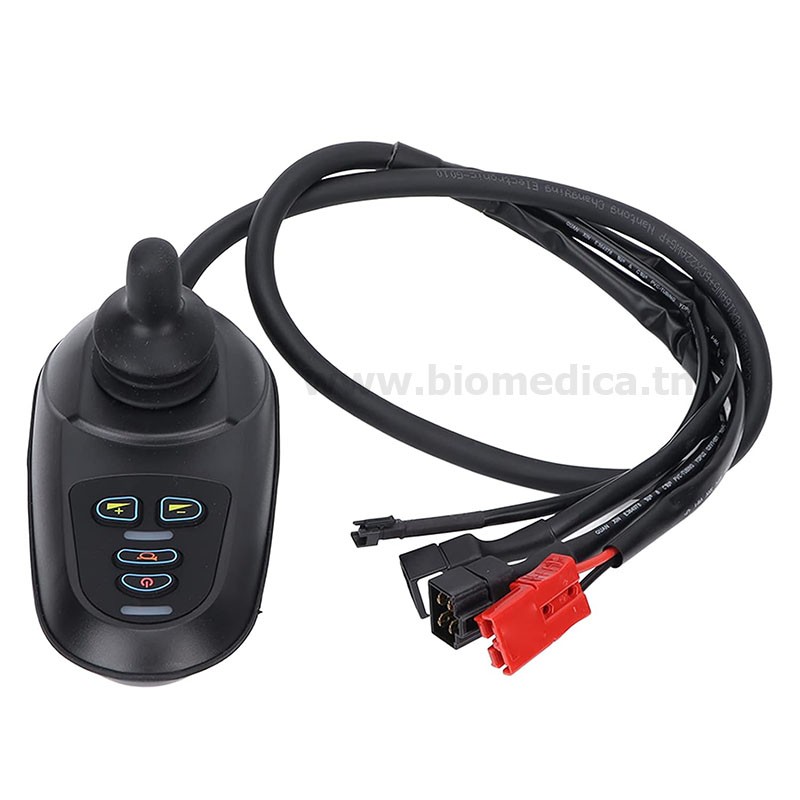

Electric Wheelchair Controller Joystick

Universal Electric Wheelchair Control Joystick - Spare Part

The Universal Electric Wheelchair Control Joystick offers 360° freedom of movement, ensuring precision and flexibility. Simple to use, it allows for easy movement on all types of terrain.

This sensitive joystick boasts exceptional compatibility with numerous platforms, including electric wheelchairs, robots, entertainment devices, and mobile devices.

JOYSTICK: Control speed, direction, and parking. The joystick is stationary and controls only the direction of movement. The procedure is complete when the joystick is automatically released (neutral position).

Its complex control algorithm guarantees high stability at startup, variable power consumption, and high sensitivity. Five different speeds are available to adapt to your specific needs, ensuring safe and comfortable use on all surfaces.

PROFESSIONAL: 4-disc ABS braking system; Automatically stops upon activation, ensuring optimal safety. Features electric buttons, including accelerator, unlock, and horn. Compatible with all types of wheelchairs.

SMOOTH SPEED SHIFTING: Smooth start, progressive acceleration and deceleration, imperceptible gear changes without abrupt stops, and easy operation. Provides high precision for controlling the wheelchair's speed and direction.

WIDE COMPATIBILITY: Thanks to its multiple interfaces, it is easy to connect and use. Compatible with most brands of electric wheelchairs, this accessory is essential and practical.

Technical Specifications

• - Category: Wheelchair Controller
• - Material: ABS
• - Braking Current: 24V DC
• - Braking Current: 300-3000mA
• - Maximum Load: 6A
• - Waterproofing: IPX5 (electronic equipment)
• - Operating Temperature: -25°C to +50°C
• - Storage Temperature: -40°C to +80°C
• - Motor: 24V DC Brushed

Applications: Electric wheelchairs, smart robots, entertainment devices, bar carts, remote-controlled cars, monitoring and handling platforms for various portable products.

Operating Instructions:

On/Off: Press this button to turn on the device; the battery indicator light will illuminate and the system will start. Press the button again to turn off the device. Press and hold the button for more than 0.5 seconds to prevent malfunctions. Deceleration button: Reduces the maximum speed. Press once to downshift; the current speed is displayed on the screen.

Acceleration button: Increases the maximum speed. Press once to shift to a higher gear; the current speed is displayed on the screen.

Joystick: Controls speed and direction while driving and parking. The joystick moves in the same direction as the steering wheel. Release the joystick (center position) to stop the vehicle.

Horn button: Activates the horn.

Package contents:

• - 1 game controller
• - 1 user manual (French version not guaranteed).

----
